Complete!

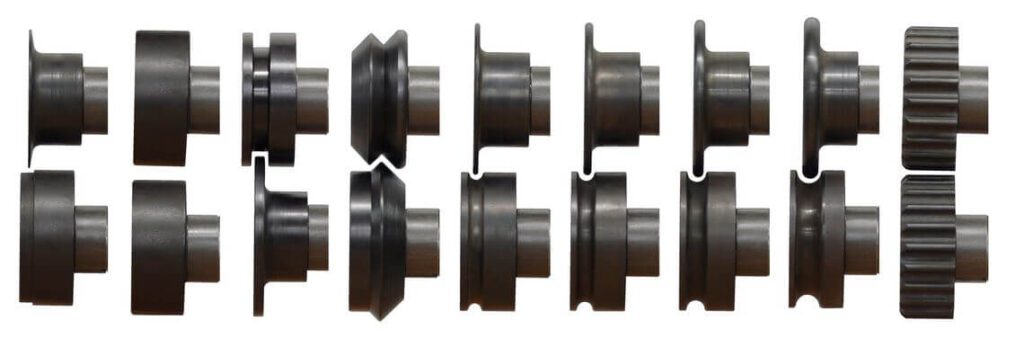

The compact and versatile RAS swaging machines are ideal for the workshop as well as the construction site. They are ready for all applications with the 9 sets of standard wheels.
Produktinfo
The RAS 11.15 with manual drive is the ideal swaging machine for the workshop as well as the construction site. The standard delivery already includes 9 sets of wheels for all common applications.
The RAS 11.35 swaging machine comes on a stand and with 9 sets of wheels for all common applications. On this motor driven machine, the speed can be steplessly adjusted using a poti on the machine stand. Experienced operators choose higher speeds, less trained people prefer the slower speed range. With the foot switch the set speed can be recalled and the rotation of the rolls can be changed for Left-Right-Run.

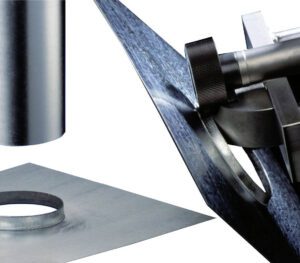

The high-strength and extra-large stop plate is designed for the highest demands. In addition, other stop plates are available.
| Technical Data | RAS 11.35 | RAS 11.15 |
|---|---|---|
| Center-to-center distance | 50 mm | 50 mm |
| Material thickness max | 1.25 mm | 1.25 mm |
| Working depth max | 200 mm | 200 mm |
| Speed max | 0-20 m/min | manual |
| Table version (T), stand (S) | S | T/S |
| Right-left-run | motorized | manual |
| Sets of wheels included | 9 | 9 |
